2024 Chevrolet Equinox EV

Powertrain:

2017 Tesla Model 3

Powertrain:

Compare 2024 Chevrolet Equinox EV vs 2017 Tesla Model 3

2024 Chevrolet Equinox EV side view comparison
2017 Tesla Model 3 side view comparison
2024 Chevrolet Equinox EV4839 mm
2017 Tesla Model 34694 mm

Dimensions

The 2024 Chevrolet Equinox EV is about 145 mm longer, 41 mm wider, and 203 mm taller than the 2017 Tesla Model 3.

2024 Chevrolet Equinox EV
2017 Tesla Model 3

4839 mm (+145)
Length
4694 mm

1890 mm (+41)
Width exc. mirrors
1849 mm

2155 mm (+67)
Width inc. mirrors
2088 mm

1646 mm (+203)
Height
1443 mm

Front view

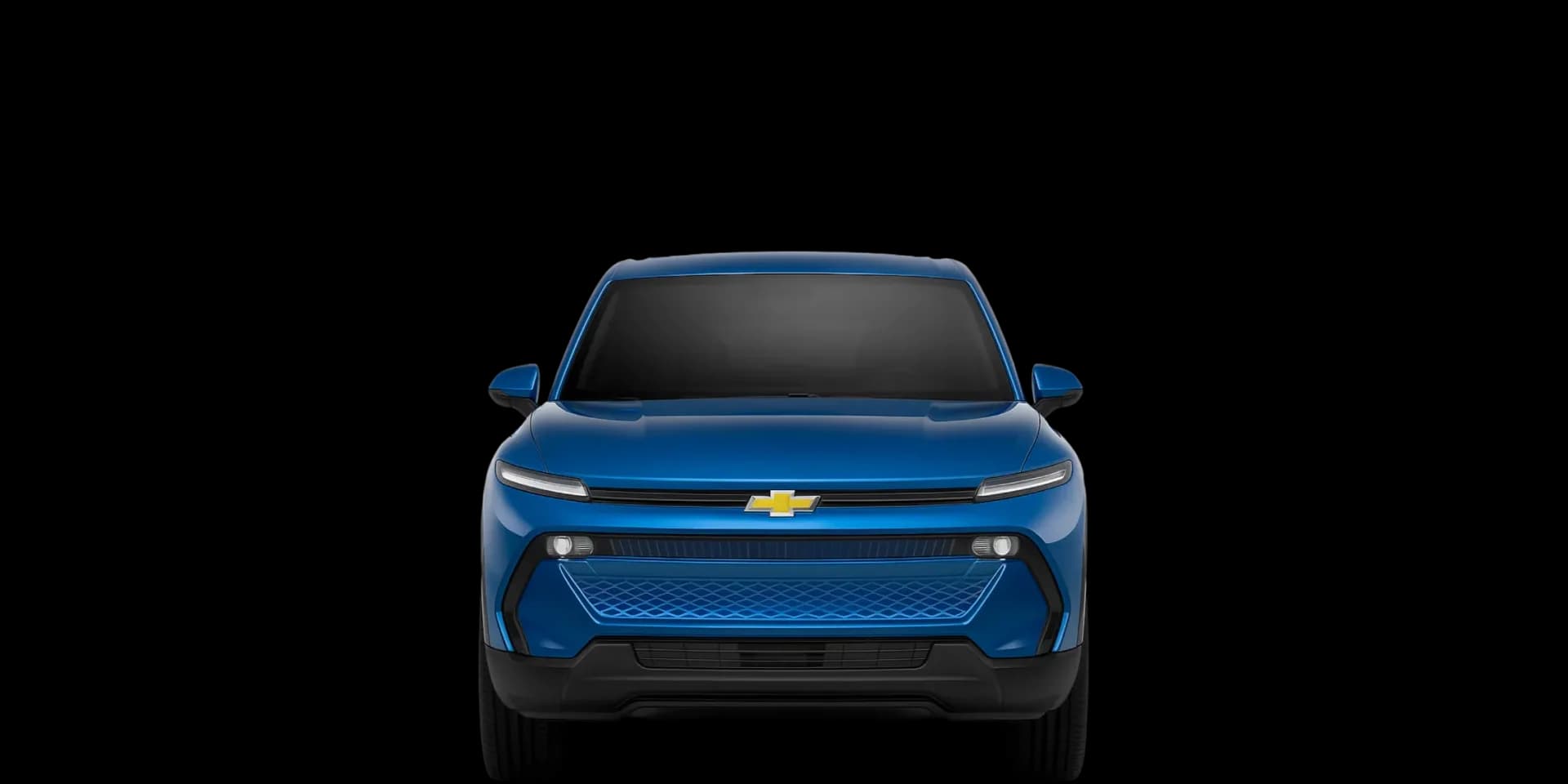

2024 Chevrolet Equinox EV — Front view
2017 Tesla Model 3 — Front view

Capacity

The 2024 Chevrolet Equinox EV offers about 206 L more cargo space with the seats up and 643 L more cargo space with the seats folded than the 2017 Tesla Model 3. The 2024 Chevrolet Equinox EV has one more door than the 2017 Tesla Model 3. Both models have 5 seats.

2024 Chevrolet Equinox EV
2017 Tesla Model 3

748 L (+206)
Min. cargo capacity (global - seats up)
542 L

1620 L (+643)
Max. cargo capacity (global - seats down)
977 L

748 L (+206)
Min. cargo capacity (USA - seats up)
542 L

1620 L (+643)
Max. cargo capacity (USA - seats down)
977 L

5
Doors
4

5
Max. seats
5

Rear view

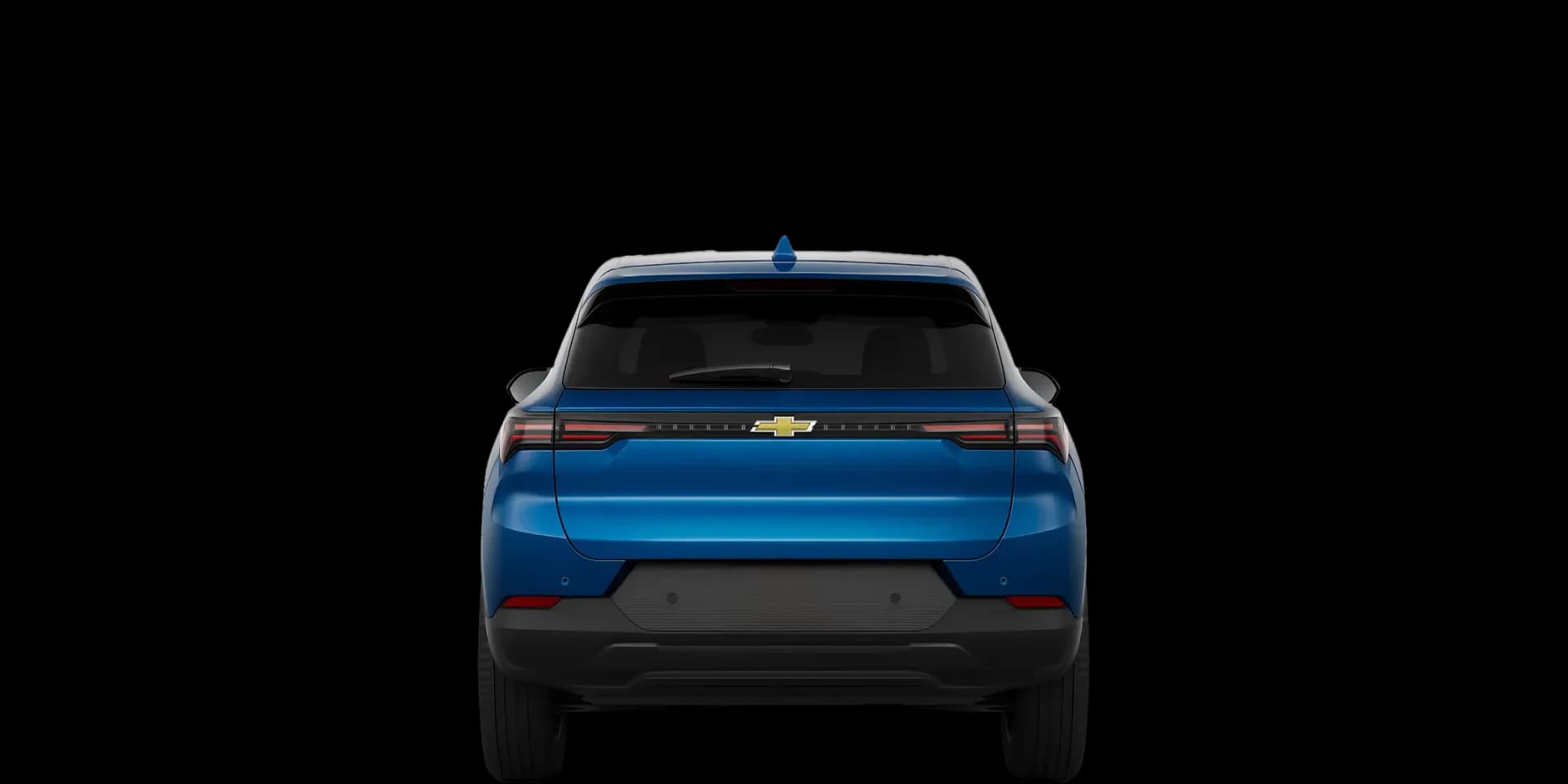

2024 Chevrolet Equinox EV — Rear view
2017 Tesla Model 3 — Rear view

Misc.

The 2024 Chevrolet Equinox EV has a wheelbase about 79 mm longer than the 2017 Tesla Model 3. The 2024 Chevrolet Equinox EV weighs about 456 kg more than the 2017 Tesla Model 3. The 2024 Chevrolet Equinox EV offers about 23 mm more ground clearance than the 2017 Tesla Model 3.

2024 Chevrolet Equinox EV
2017 Tesla Model 3

2954 mm (+79)
Wheelbase
2875 mm

2186 kg (+456)
Curb weight
1730 kg

163 mm (+23)
Ground clearance
140 mm

11.6 m
Turning circle

Side view

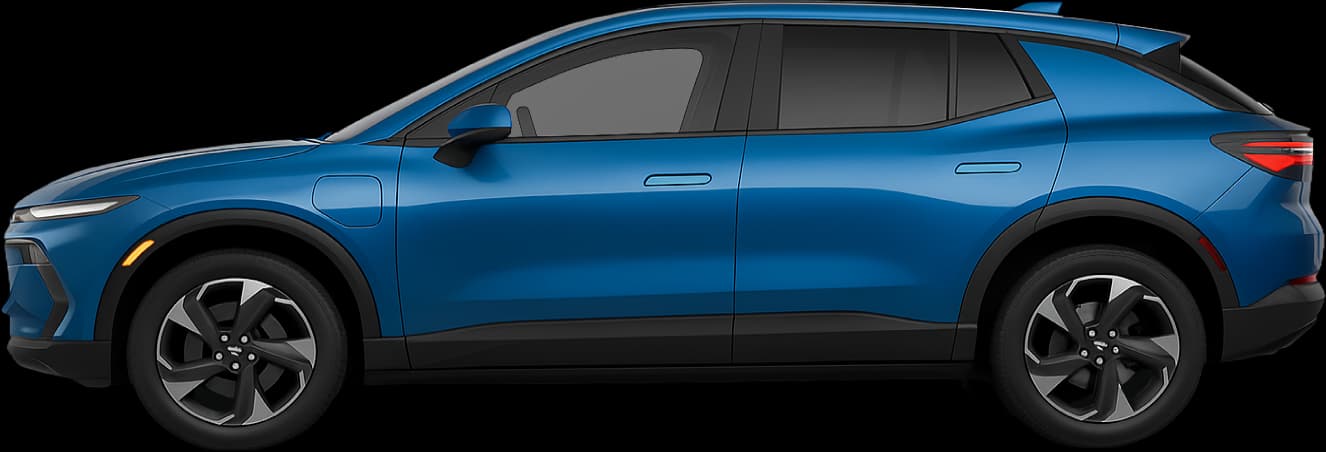

2024 Chevrolet Equinox EV — Side view
2017 Tesla Model 3 — Side view

Frequently asked questions


How do the dimensions of the 2024 Chevrolet Equinox EV compare with the 2017 Tesla Model 3?

Length: 2024 Chevrolet Equinox EV 4,839 mm; 2017 Tesla Model 3 4,694 mm. 2024 Chevrolet Equinox EV is longer by 145 mm. Width (excluding mirrors): 2024 Chevrolet Equinox EV 1,890 mm; 2017 Tesla Model 3 1,849 mm. 2024 Chevrolet Equinox EV is wider by 41 mm. Height: 2024 Chevrolet Equinox EV 1,646 mm; 2017 Tesla Model 3 1,443 mm. 2024 Chevrolet Equinox EV is taller by 203 mm.


Which car has more cargo space?

2024 Chevrolet Equinox EV: at least 748 L and up to 1,620 L 2017 Tesla Model 3: at least 542 L and up to 977 L 2024 Chevrolet Equinox EV offers about 643 L more space.


Which car seats more passengers?

2024 Chevrolet Equinox EV: up to 5 seats 2017 Tesla Model 3: up to 5 seats Seating capacity is identical.


Which car weighs more?

2024 Chevrolet Equinox EV: around 2,186 kg 2017 Tesla Model 3: around 1,730 kg 2024 Chevrolet Equinox EV is heavier by roughly 456 kg.


Which car is easier to maneuver?

2024 Chevrolet Equinox EV: 11.6 m
